RALLY RAID SUSPENSION

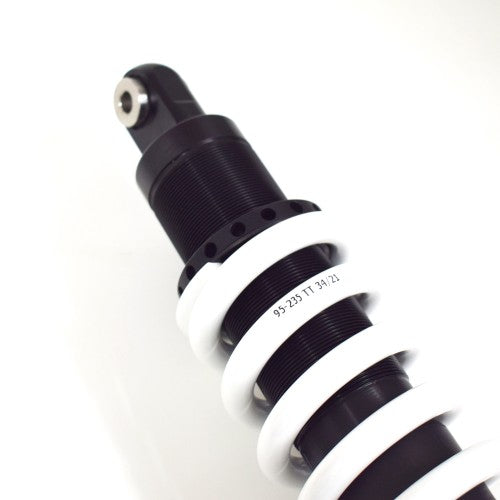

CRF300 L/R LEVEL 2 SHOCK

CRF300 L/R LEVEL 2 SHOCK

SKU: S-CRF-L2S-80

Regular price £533.28 GBP
£444.40 GBP excl VAT
Regular price
£0.00 excl VAT
Sale price £533.28 GBP
£444.40 GBP excl VAT
Sale Sold out
Shipping calculated at checkout.
SPRING RATE (N/mm)
HYDRAULIC PRELOAD ADJUSTER

Need help or advice before ordering ? Check our FAQ or drop us a message below.

PLEASE READ ALL INFORMATION CAREFULLY BEFORE PLACING AN ORDER

View full details
  • OVERVIEW
  • TECHNICAL SPEC
  • SPRING RATES
  • IMPORTANT INFO
  • SUPPORT & FITTING

LEVEL 2 Rear Shock (250mm travel) - suitable for both CRF300L & Rally.



Developed in conjunction with our engineering partners TracTive Suspension in the Netherlands, our unique high performance shock features a huge 46mm diameter body and piston (similar to those used for our KTM 690 and Yamaha Tenere 700 rear suspension) which offers a dramatic increase in oil flow for far more precise damping control under a wide range of conditions, and more oil capacity to help reduce damping fade.



Together with offering a wide range of spring rates, the nitrogen-charged shock body features a separation piston to eliminate foaming and provides consistent damping characteristics. This is key during prolonged off-road riding or more spirited highway riding, and whether you are solo or laden with luggage.



Be aware that while our LEVEL 2 (250mm travel) CRF shock offers the same overall travel as the OEM specification, now you have the rear of the bike sprung with correct rate for your weight (ie. without the excessive sag of the soft standard components) correspondingly you will have effectively raised your ride/seat height by around 30-40mm (depending on your personal sag preference) - in other words, you now have more of the total travel available than before, and a corresponding increase in seat height and ground clearance.



In that regard, while it is perfectly possible to fit our 250mm travel LEVEL 2 rear shock independently of any other upgrades, we would recommend you consider matching it with our dedicated LEVEL 2 fork kit for properly balanced ride-height and geometry - offering a high performance suspension set-up front and rear.



Subsequently if you do plan to fit our LEVEL 2 front and rear together, we also recommend you also fit our +20mm longer side stand (link below), otherwise the taller height of the bike will cause it to lean over excessively when on the OEM side stand.





OPTIONAL HYDRAULIC PRELOAD ADJUSTER for CRF300L & RALLY (select from menu box above).



note. We specifically developed the Hydraulic Preload Adjuster option as it is difficult to access the standard threaded preload ring on our upgraded shocks to adjust the preload, without having to remove the shock.



Our remote hydraulic adjuster is designed for riders that want quick, easy adjustment of spring preload. It allows the preload to be adjusted over a range of +/-15mm with the simple turning of a knob. Approximately 30 turns will achieve the full movement of the preload piston travel, and the knob has a 'click' every half-turn to aid setting.


Limited shock access on these bikes means a remote adjuster is much preferred by those riders who wish to adjust the preload/rear sag setting on a regular basis - typically when carrying extra luggage or a passenger, or when going from street to off-road travelling.



Supplied readily assembled on your shock together with all fitting hardware, including 2 different HPA adjuster handle brackets for both Euro 5 & non-Euro 5 models.

LEVEL 2 Shock specifications



Developed in conjunction with our engineering partners TracTive Suspension in the Netherlands, our unique big-body shock features a huge 46mm diameter body and piston (similar to those used for our KTM 690 and Yamaha Tenere 700 rear suspension) , compared to the OEM piston of 35mm diameter,which offers a dramatic increase in oil flow for far more precise damping control under a wide range of conditions, and more oil capacity to help reduce damping fade.



FEATURES INCLUDE:



High quality all-aluminium 46mm diameter body/piston shock.



16mm damper shaft provides exceptional strength and smooth travel.


Manual preload adjustment via billet preload ring, or our optional remote hydraulic preload adjuster for CRF300L & Rally models.


Easily accessible combined damping adjuster (24 clicks), which incorporates proportional valving between Rebound (80%) and Compression (20%) damping.


Choice of five different spring rates available (at the point of purchase - see drop down menu) to more closely match your weight and riding style requirements (see SPRING RATES section).



Additional information



LEVEL 2 dimensions : 412mm eye to eye / shock stroke is 98mm.


Saves 0.25kg (1/2lb) in weight compared to OEM steel shock.


Our CRF300 shock kits also includes a dedicated TracTive preload and damping adjustment multi-tool, and replacement lower mounting bolt (longer).


All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.



A choice of five different spring rates available (at the point of purchase - see drop down menu) to more closely match your weight and riding style requirements:


Suggested rider/spring rates for LEVEL 2 shock - depending on your rider & luggage weight (weigh yourself with all your riding gear on):



Up to 70Kg80N/mm (L2 comfort/soft spring)
70-80Kg85N/mm (L2 supplied as standard)
80-90Kg90N/mm (L2 heavier rider or more aggressive off-road)
90-100Kg95N/mm (L2 typically with a larger luggage load)
100Kg+100Nmm (L2 heavy-duty spring for maximum load)



Convert lbs to KG here

If you do plan to fit our LEVEL 2 front and rear suspension together, we strongly recommend you also fit our +20mm longer side stand (link below), otherwise the taller height of the bike will cause it to lean over excessively when on the OEM side stand.

CRF300 Shock Fitting Instructions (downloadable PDF)



RIDER AND STATIC SAG VIDEO (Rally Raid Products)

SHOCK FITTING VIDEO (Customer)

MAD-TV VIDEO

  • REAR SHOCK SAG GUIDE

    Not sure what sag is, or what to look for when setting it ? Here's a video for people who are new to the idea for static and rider sag measurements.
