RALLY RAID SUSPENSION
TRIUMPH SCRAMBLER 400X/SPEED LOW SHOCK
TRIUMPH SCRAMBLER 400X/SPEED LOW SHOCK
£444.50 GBP excl VAT
£0.00 excl VAT
£444.50 GBP excl VAT
Couldn't load pickup availability
Need help or advice before ordering ? Check our FAQ or drop us a message below.
View full details
- OVERVIEW
- TECHNICAL SPEC
- SPRING RATES
- IMPORTANT INFORMATION
- SUPPORT AND FITTING

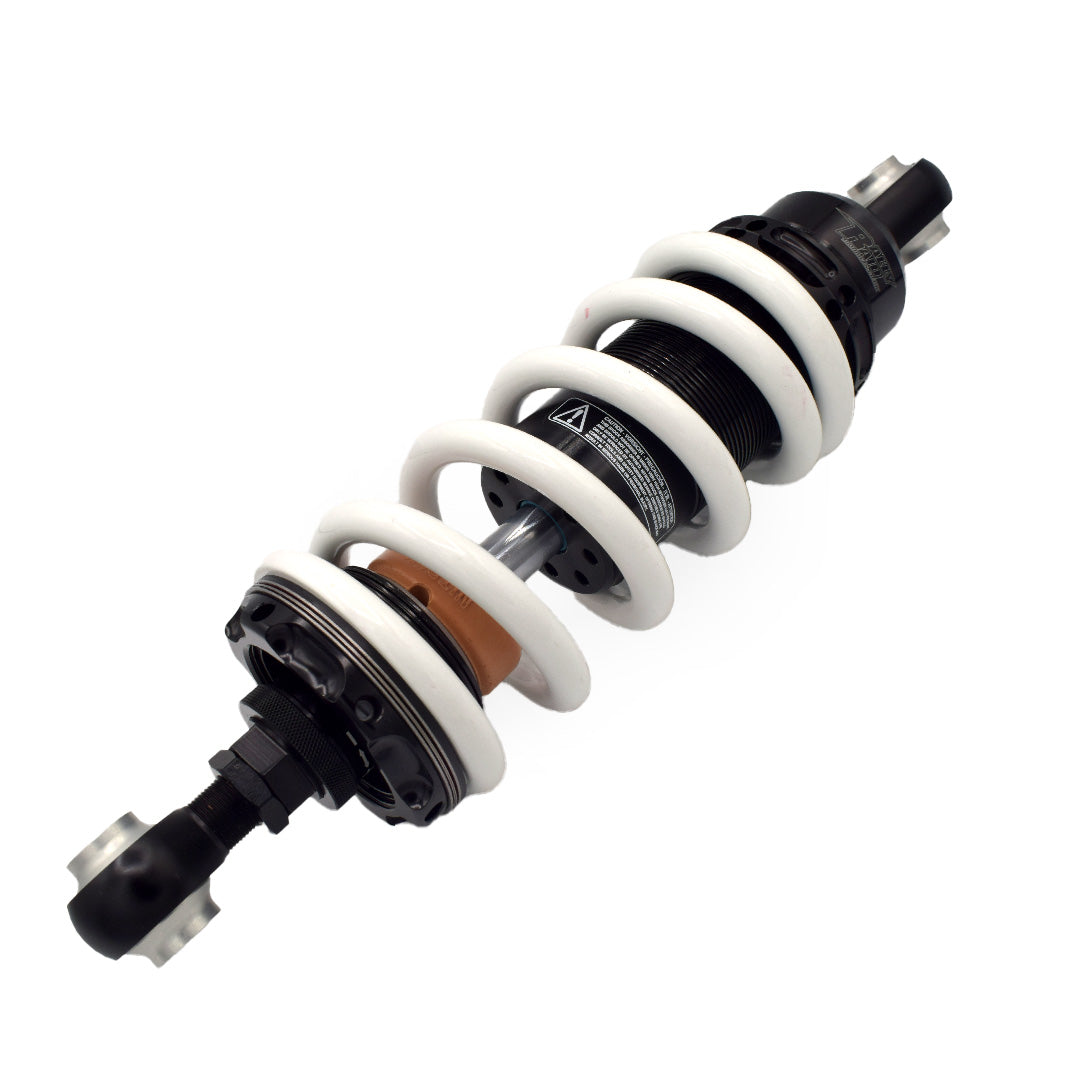

LOW Rear Shock - LOW SEAT HEIGHT/shorter travel rear suspension upgrade.
High quality aluminium big-bore rear shock, with adjustable damping and a choice of spring rates to suit a wide range of rider/luggage weights and applications.
The adjustable shock body is unique to this LOW model shock, and allows the seat height to be lowered from -20mm to -50mm compared to standard.
The aluminium-bodied shock gives a weight saving of over 1.5Kg compared to OEM shock.
note. This is the REAR SHOCK ONLY, if you also require the standard travel fork upgrade kit this can be ordered separately.
The shock body features an easily accessible combined damping adjuster (at a fixed ratio of 80% Rebound and 20% Compression), with 24 clicks of adjustment.
We offer a choice of five spring rates at the point of purchase: 100 N/mm, 110 N/mm, 120 N/mm (standard), 130 N/mm and 140 N/mm.
The Spring preload is easily adjustable at the bottom of the shock, next to the rear wheel,along with the damping adjuster, for easy access.
The aluminium-bodied shock gives a weight saving of over 1.5Kg compared to OEM
shock steel shock.
All Rally Raid Products Rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty
Triumph 400X Spring Rate guidelines
Always weigh your self with your Riding Gear on, and convert to KG.
| Up to 70Kgs (inc.light luggage up to 15Kg) | 100N/mm (Softest Spring) |
| Total 70-85Kgs (inc.light luggage up to 15Kg) | 110 N/mm (Softer Spring) |
| Total 85-105Kgs (inc.light luggage up to 15Kg) | 120N/mm (Standard Spring) |
| Total 105-120Kgs(inc.light luggage up to 15Kg) | 130N/mm (Heavier Spring) |
| Above 120kgs | 140N.mm (Heaviest Spring) |
The Low Rear Shock CAN be installed on to the Triumph Speed 400, and acts as an OEM replacment shock retaing the oem seat height.
Fitting instructions and video to follow shortly.
-
