RALLY RAID SUSPENSION

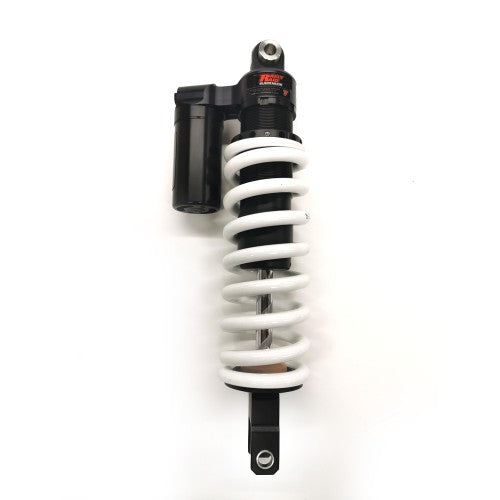

YAMAHA T7 RALLY SHOCK (+25mm TRAVEL)
YAMAHA T7 RALLY SHOCK (+25mm TRAVEL)
£918.76 GBP excl VAT
£0.00 excl VAT
£918.76 GBP excl VAT
Need help or advice before ordering ? Check our FAQ or drop us a message below.
View full details- OVERVIEW
- TECHNICAL SPEC
- SPRING RATES
- IMPORTANT INFO
- SUPPORT & FITTING
Our +25mm longer-travel 'RALLY' Suspension system has been developed specifically for those riders wishing to take their Yamaha T7 Tenere on extreme terrain, tough trails & cross-country competition events, and has already been proven in long-distance desert Rally Racing conditions.
We consider our RALLY specification the ultimate upgrade for owners who wish to fully exploit the off-road potential of the Yamaha Tenere 700 platform.
This high quality TWIN PISTON PDS rear shock, has been designed specifically to increase all-terrain performance, and our 'RALLY' shock specification has been specifically tuned to offer enhanced performance with an off-road bias, together with a useful increase in overall travel and ground clearance - more suited to aggressive solo riding over all terrain.
Manufactured exclusively for Rally Raid Products by TracTive Suspension in the Netherlands, we designed our RALLY shock to address all the shortcomings of the OEM standard suspension and allow owners to fully exploit the potential of the Tenere 700 platform.
The piggy-back reservoir design features individual adjustment of the High and Low speed Compression damping together with a separate Rebound adjuster easily accessed at the base of the shock body.
Important Note. To fully appreciate the benefits our uprated RALLY shock, we strongly recommend you pair this with our high performance RALLY specification Closed Cartridge Fork Kit, not least as it the +25mm increase in travel and ride hight is then matched front and rear, and has been similarly tuned for more aggressive off-road performance.
T7 RALLY Shock specification in more detail
The all-aluminium shock body for the Tenere 700 uses our own CAD designed top cap profile to give the necessary clearance between the air-box and frame, and at the same time allows easy access to the MX-style High & Low speed compression adjusters.
The shock body itself utilises a large diameter (46mm) piston assembly for primary damping control, together with a second PDS piston/circuit to offer more accurate control and cushioning during the final portion of the suspension stroke.
The internal components are all precision CNC machined from Cro-Mo and Stainless Steel, with the shock featuring a 16mm diameter shaft to improve overall strength & rigidity and ensure consistently smooth operation and durability.
Our RALLY shock specification offers a 12.5% increase in travel (225mm vs. 200mm) compared to OEM and our EXTREME shock, and offers a range of three different spring rates to help tailor your rear suspension for different rider/load weights.
Our T7 RALLY Shock features
• 225mm travel - improving rough terrain ride quality and ground clearance.
• Large diameter (46mm) shock body and piston with PDS valving.
• 16mm diameter shock shaft.
• Oil reservoir for increased oil capacity and cooling, featuring individual High and Low speed compression damping adjusters (easily accessed using a slotted screwdriver).
• Dedicated Rebound damping adjuster easily accessed at the base of the shock.
The RALLY shock comes ready assembled with your choice of spring.
All Rally Raid Products / TracTive rear shocks are fully serviceable/rebuildable and come with a 2-year Manufacturer warranty.
A choice of three different spring rates are available (select from the menu above) to more closely match your weight and riding style requirements:
Spring rate guidelines
We suggest you weigh yourself wearing your typical riding apparel (including boots and helmet), and apply that to the following spring rate chart - depending on whether you plan to ride mainly solo, or with an amount of luggage and/or a passenger.
Suggested Spring Rate (based on rider weight)
80 N/mm - Rider weight of -80kg
85 N/mm - Rider weight of 80-95Kg (or with light luggage up to 15kg)
90 N/mm - Rider weight of 95Kg plus
Note. It is NOT possible to fit our HPA (Hydraulic Preload Adjuster) to the RALLY shock. Only manual adjustment/setting off the spring preload is available.
Note. To fully appreciate the benefits our uprated RALLY shock, we strongly recommend you pair this with our high performance RALLY specification Closed Cartridge Fork Kit, not least as it the +25mm increase in travel and ride hight is then matched front and rear, and it has been similarly tuned for more aggressive off-road performance.
